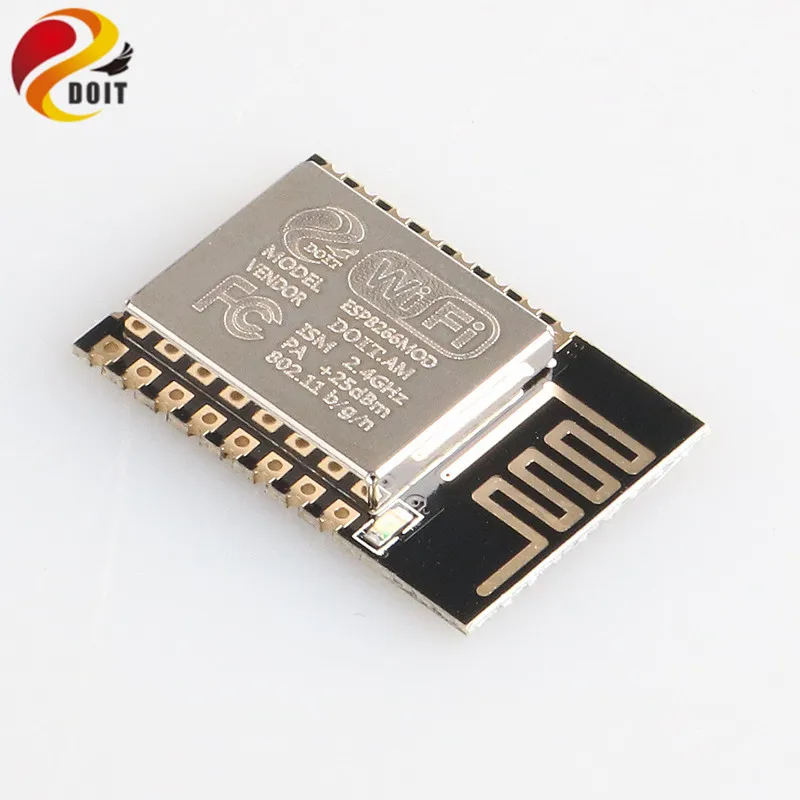

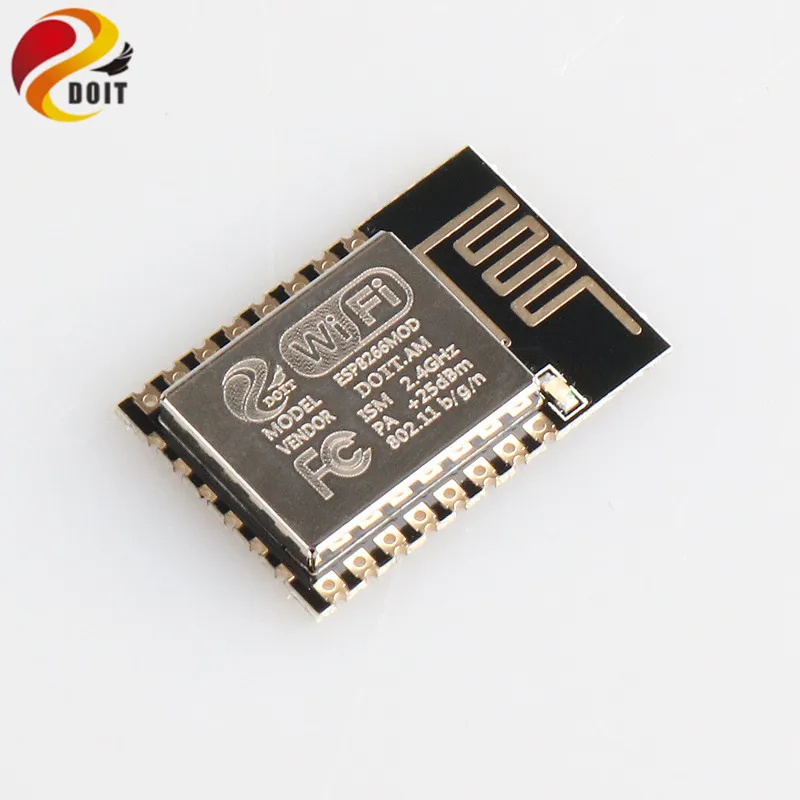

ESP-12E WiFi Module Wireless ESP8266 Wireless Transparent Transmission / Industrial Grade

0 stars, based on 0reviews
Price:
$2.10 / piece
Quantity: - + 9867items available
Note:
(1) The module supply voltage is 3.3V DC and the current is 500mA or more;
(2) Wi-Fi module IO maximum output current is 12mA;
(2) Wi-Fi module NRST pin is active low; EN enable pin is active high;
(4) The Wi-Fi module enters the upgrade mode: GPIO0 is at a low level, then the module is reset and powered on; the Wi-Fi module enters the normal working mode: GPIO0 is at a high level, and the module is reset and powered.
(5) The RXD of the Wi-Fi module is connected to the TXD of the external MCU, and the TXD of the Wi-Fi module is connected to the RXD of the external MCU;

Images:
234无标题无标题2
